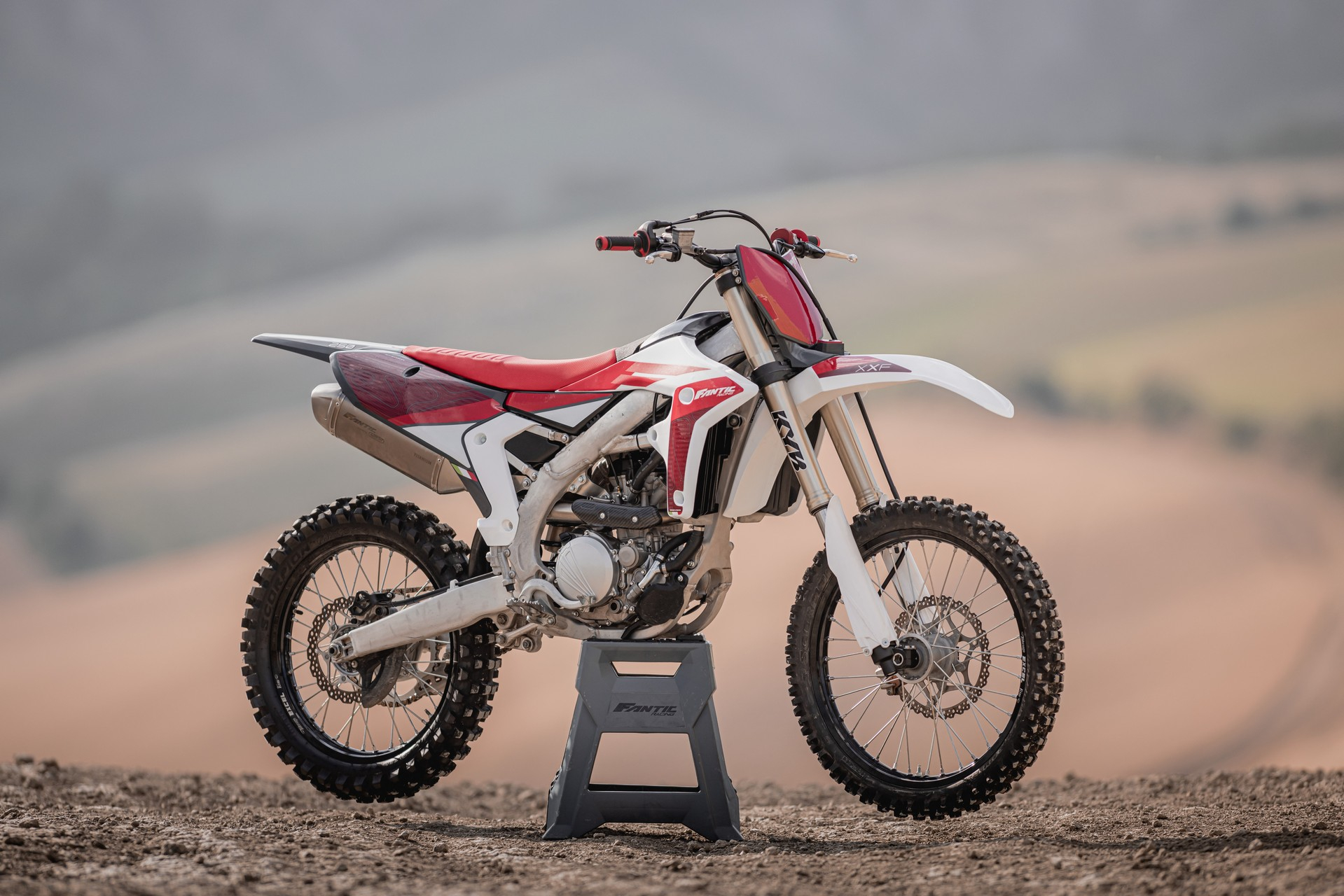

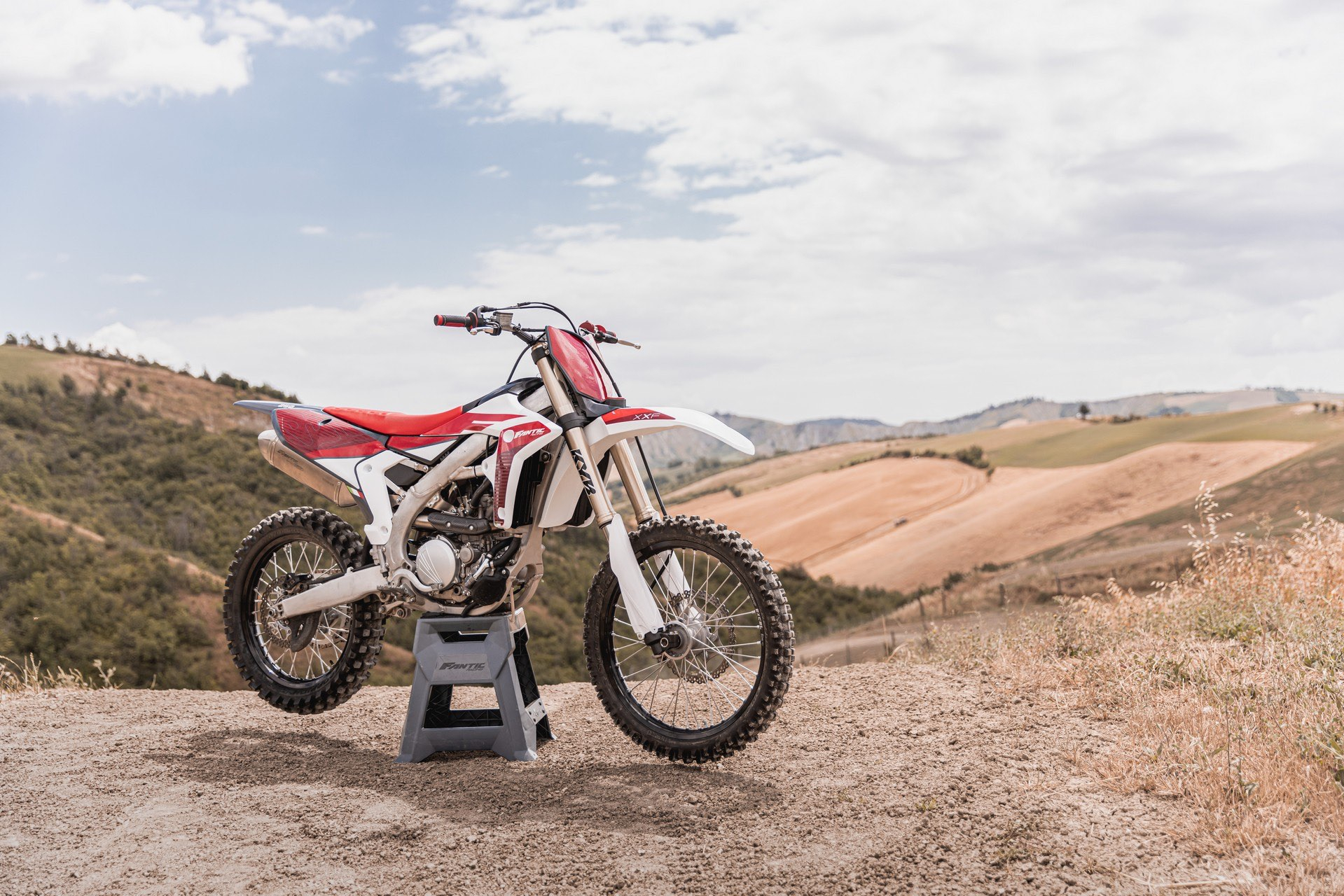

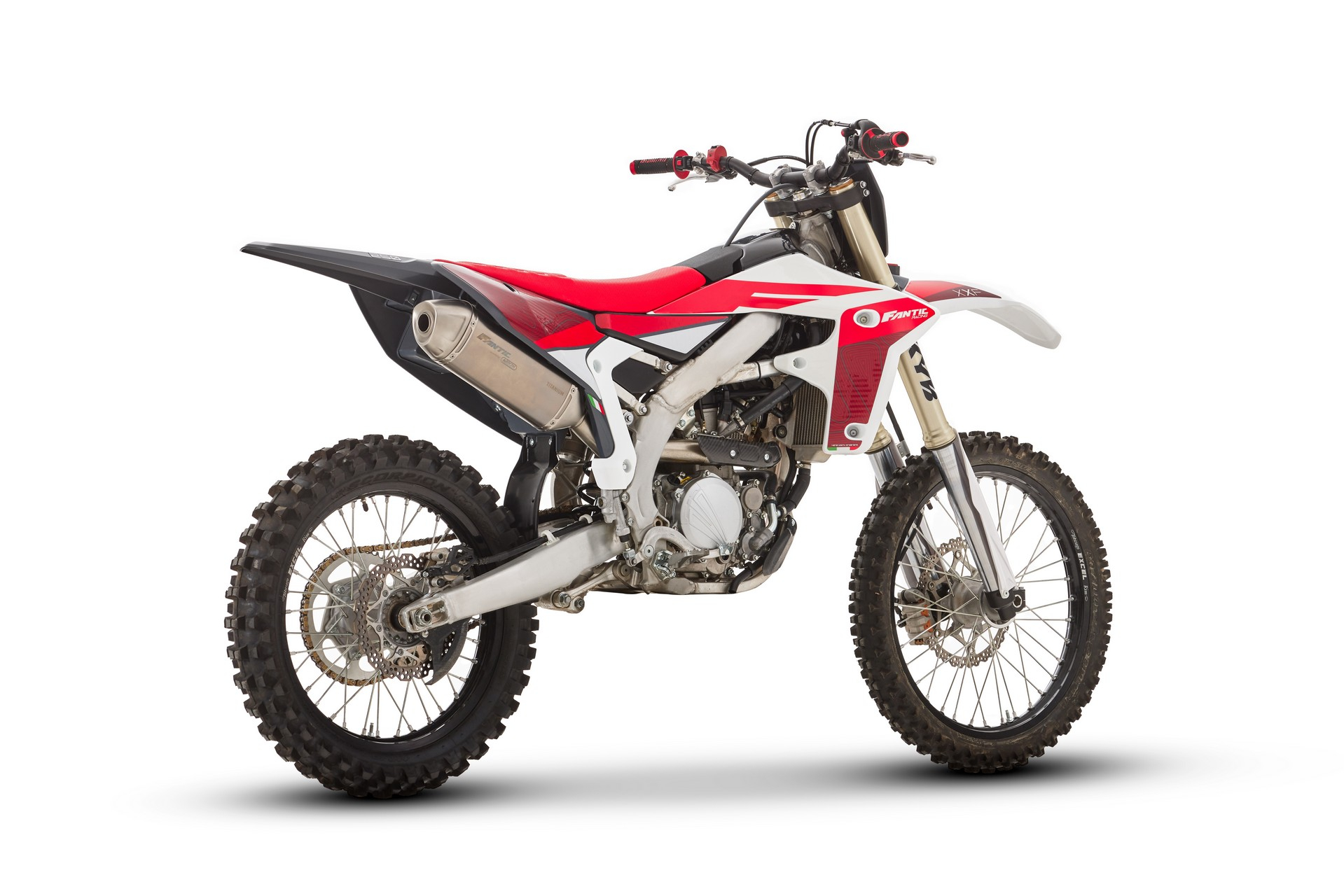

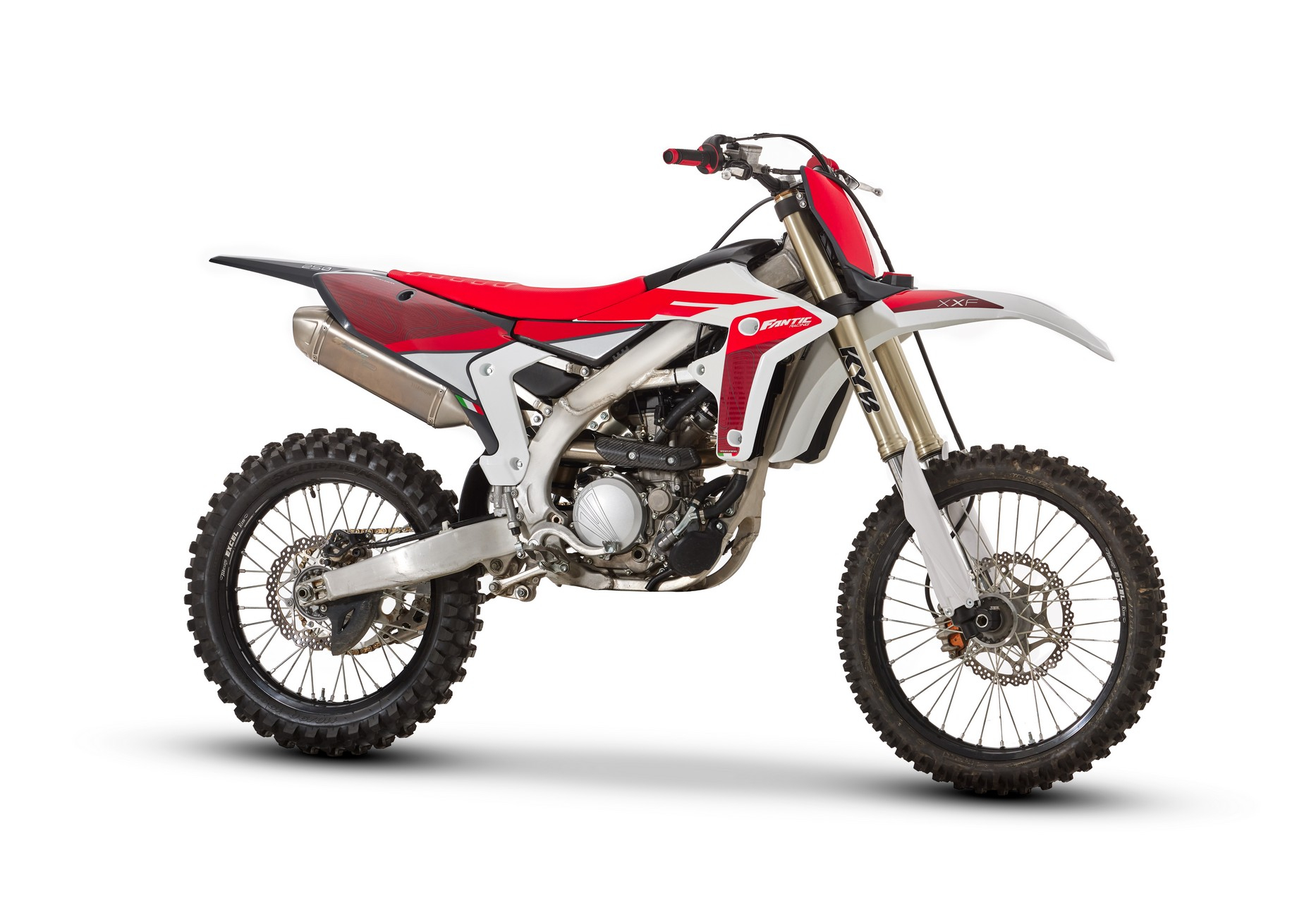

Fantic 250 XXF 4T MX

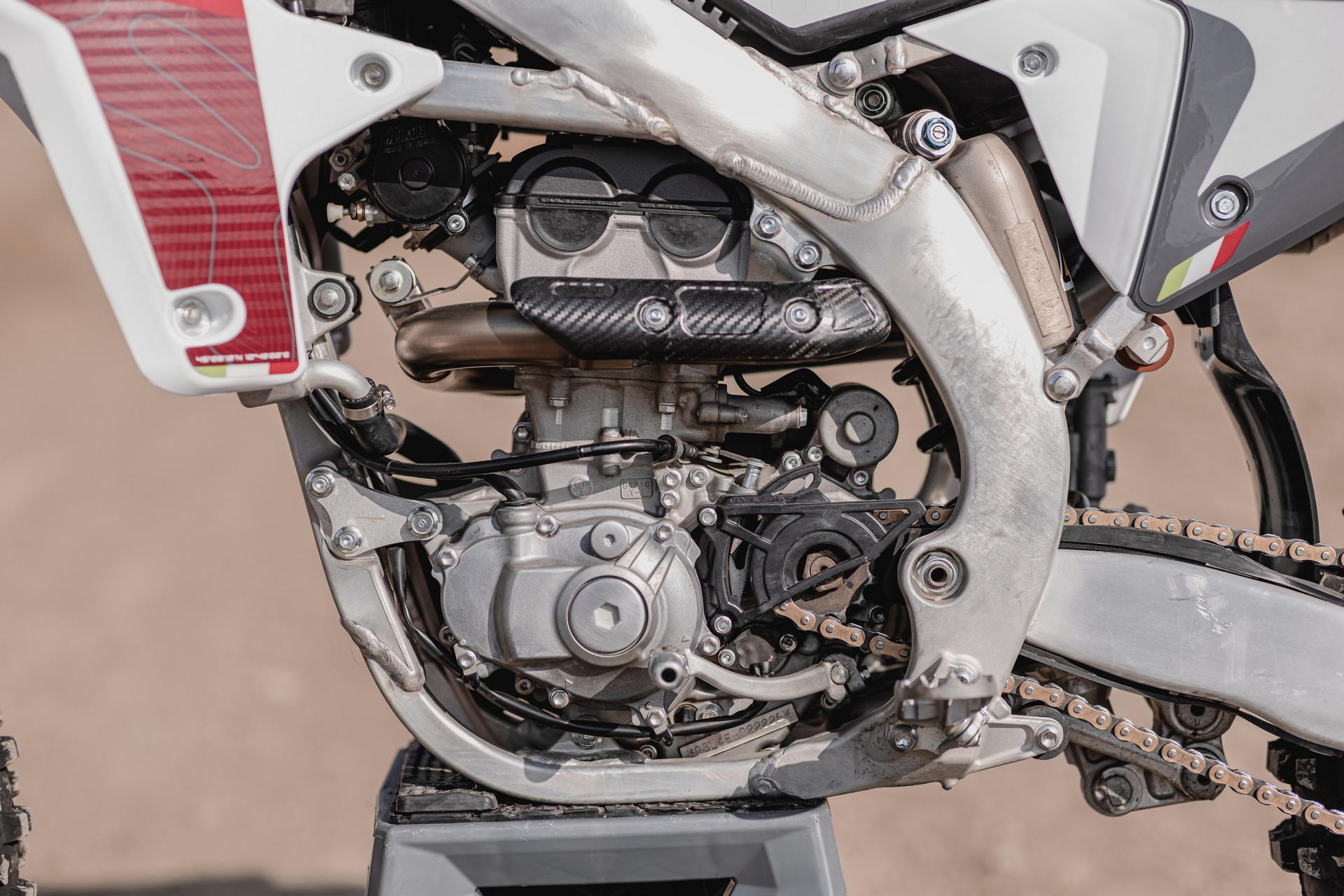

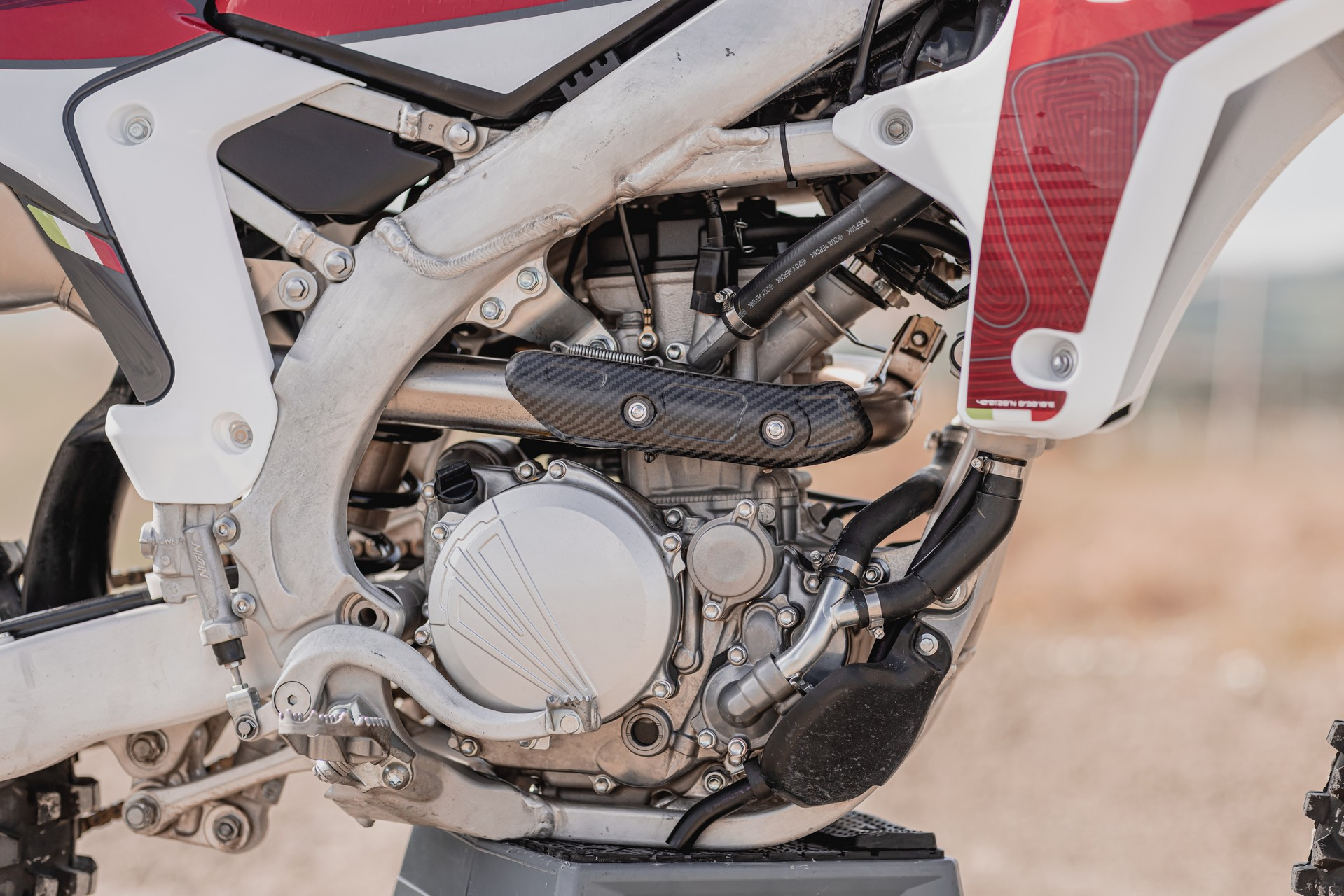

ENGINE:

Type: Single-cylinder 4-strokes, liquid cooled, 4 valves, DOHC

Displacement: 250 cc

Induction: Fuel Injection

Bore: 77.0 mm

Stroke: 53.6 mm

Compression ratio: 13.8: 1

Ignition system: TCI

Starting system: Electric starter

Lubrication system: Wet sump

Trasmission: 5-speed

Clutch: Wet, multiple-disc

CHASSIS:

Frame type: Aluminum perimeter frame

Caster angle: 26.5°

Trail: 119 mm

Rear frame: Aluminum

Swingarm: Aluminum with variable section and progressive link

Rims: 21x1.60 – 19x1.85

Tyres: 80/100x21 - 100/90x19

Brakes: Hydraulic disc ø270mm - Hydraulic disc ø240mm

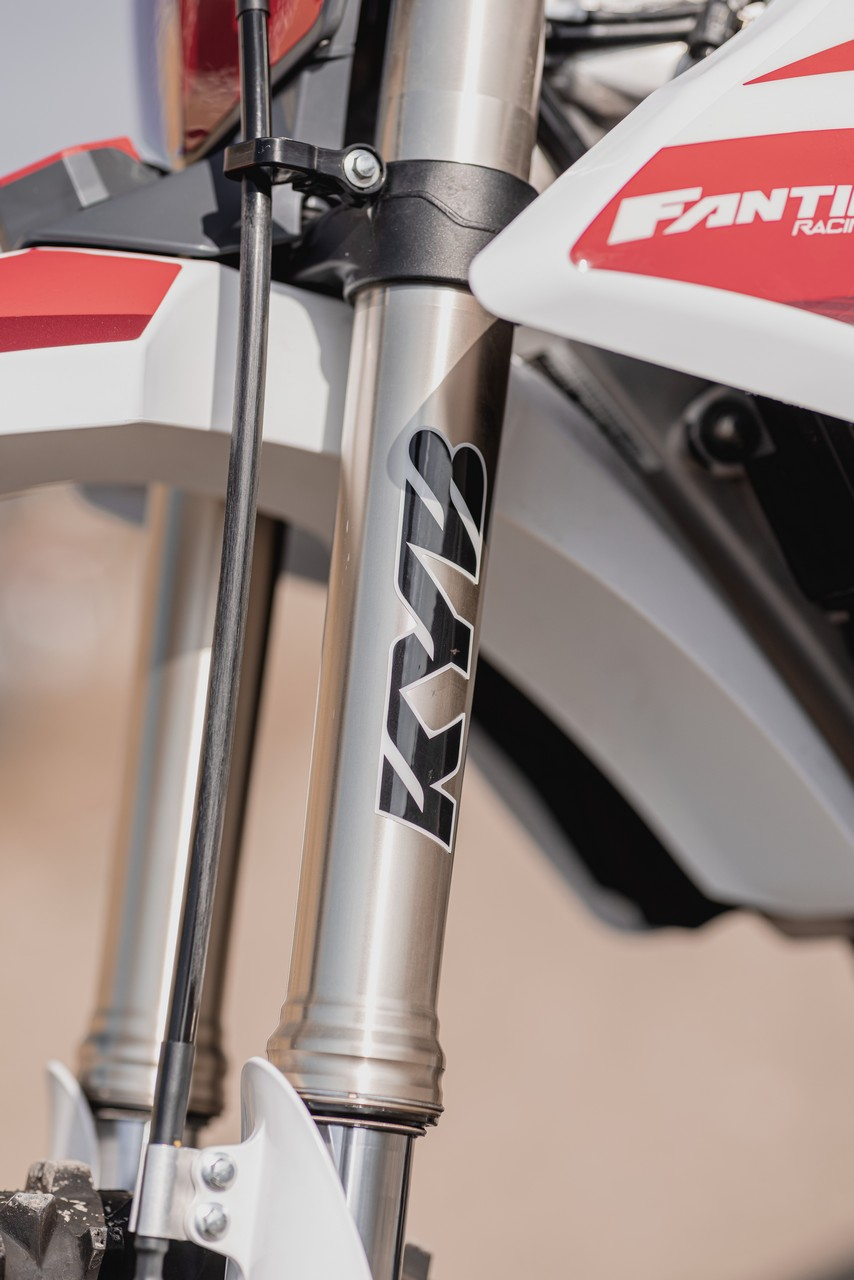

Front suspension: KYB ø48 mm, fully adjustable, wheel travel 310 mm

Rear suspension: KYB, fully adjustable, wheel travel 317 mm

OVERALL DIMENSIONS:

Length: 2175 mm

Width: 825 mm

Height: 1285 mm

Seat height: 970 mm

Wheelbase: 1475 mm

Kerb weight: 102 kg

Fuel tank capacity: 6.2 l

Engine oil quantity: 0.95 l
